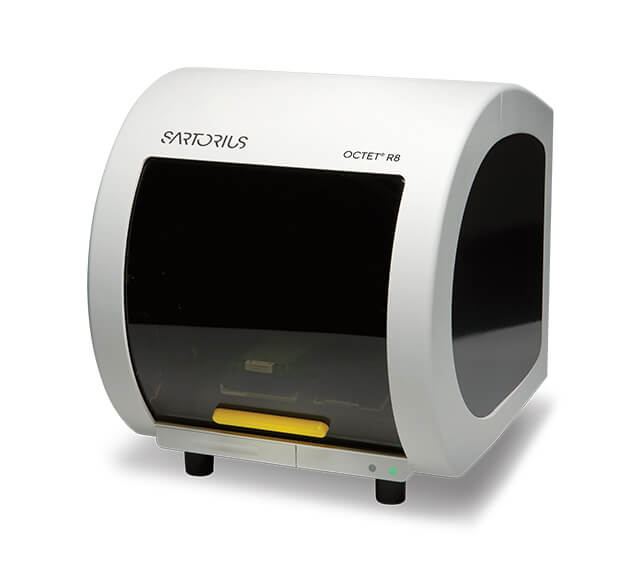

Octet R8
The Octet® R8 label-free protein analysis system enables rapid, high-throughput, and accurate characterization of biomolecules. It is designed to support extended experimental run times during biotherapeutic development and integrates seamlessly into GxP-compliant laboratory environments.
The 8-channel Octet® R8 system performs quantification and kinetic analysis of up to 96 samples within 30 minutes to 2.5 hours, depending on the specific assay. An optional microplate evaporation cover minimizes sample volume loss and enables sample recovery after analysis.
The Octet® R8 system can be used for a wide range of applications, including kinetic analysis, titer determination of IgG and other proteins, reagent qualification, immunoassay development, bioprocess development, quality control analysis, crude antibody screening, epitope binning/mapping, ligand-binding assays, small molecule analysis, elucidation of cell signaling mechanisms, and infectious disease monitoring. Analyses can be performed using a single channel or up to eight channels, providing flexibility in sample throughput.
- Categories: Protein Analysis | Octet Label-Free Detection System |
Unique Flexibility and Versatility – Eight parallel, independent channels provide maximum speed, sensitivity, and flexibility.
Extended Runtime – An optional evaporation cover supports unattended operation for up to 12 hours while minimizing sample volume loss and enabling post-analysis sample recovery even after a completed assay.
Upgrade to GxP Compliance – The Octet® R8 GxP package is available with 21 CFR Part 11 software and IQ/OQ/PQ kits, protocols, and services for regulatory compliance. Choose when to upgrade a non-GxP system to a GxP-compliant system.
Benefits of the Octet® R8 Protein Analysis System
High-Quality Kinetic Screening and Affinity Characterization
The Octet® R8 system monitors binding events in real time to calculate association rates (Ka), dissociation rates (Kd), and affinity constants (KD).
Versatility for Detecting a Wide Range of Molecules
The highly sensitive Octet® R8 system detects a broad range of biomolecules, from small molecules to proteins and cells.
Eight Parallel, Independent Channels for Maximum Speed and Flexibility
The eight channels of the Octet® R8 system can be used independently for sample screening or simultaneously, pairing sample measurements with a dedicated reference for high-quality kinetic characterization.
Ideal for Operation in GxP-Regulated Environments
Optional 21 CFR Part 11 software, installation and operational qualification (IQ/OQ), and performance qualification (PQ) kits are available for the Octet® R8 system.
Sample Plate Cooling for Temperature-Sensitive Proteins
The sample plate temperature can be controlled between 15°C and 40°C, enabling reliable kinetic determinations at different temperatures for temperature-sensitive proteins. Additional benefits include the ability to rapidly determine binding rate constants at multiple temperatures to estimate thermodynamic parameters. The eight channels of the Octet® R8 system can be used independently for sample screening or simultaneously, pairing sample measurements with a dedicated reference for high-quality kinetic characterization.
Fluidics-Free Dip and Read Format Reduces Assay Time and Maintenance Costs
Thanks to its fluidics-free design, the Octet® platform delivers faster results and improved process economics compared to other technologies. In addition, compatibility with crude samples eliminates the need for sample pretreatment, saving significant time, while non-destructive testing preserves valuable samples for other assays.
Applications
Kinetic and Affinity Characterization
The superior sensitivity of the Octet® R8 system enables measurement of both small and large molecules across a wide range of kinetic constants. By bringing the detection surface directly into contact with the sample, the system accurately measures kinetic constants while eliminating the need for microfluidics. The unique Dip and Read approach, combined with ready-to-use biosensors for most proteins, simplifies workflows and accelerates assay development. It also allows direct measurement of crude samples with minimal instrument maintenance.
Protein Quantification in Bioprocessing
Accurate and reproducible concentrations can be determined in as little as 2 minutes per sample or 32 minutes for a 96-well plate using a simple one-step assay. High sensitivity in quantification can be easily achieved by increasing read time and shaking speed. Even greater sensitivity, reaching sub-ng/mL levels, can be obtained with 2-step or 3-step assay formats, enabling faster and more sensitive automated measurement of contaminants such as host cell proteins and residual Protein A compared to ELISA. Process economics can be further improved through biosensor regeneration and reuse.
Quality Control (QC) and Manufacturing
The Octet® R8 system has been developed to operate reliably in regulated quality control (QC) environments. Octet® is widely used for method development and validation in lot release and in-process testing for ligand binding, concentration determination, and impurity analysis in both upstream and downstream processes. Combined with 21 CFR Part 11 software and a complete portfolio of GxP products and services, the ease of use and simplicity of the design make the Octet® R8 system an ideal analytical tool for compliant laboratories.
